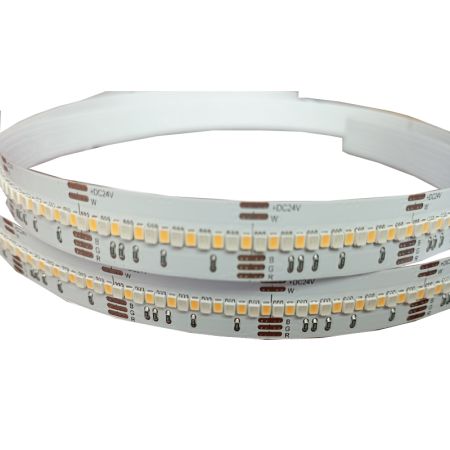

RGBW SCOB LED Strip
- Enhanced Stability: Utilizes SMD LED chips instead of flip chips, providing greater stability.
- Increased Light Efficiency: Light output efficiency is improved by 30%, resulting in uniform illumination.
- High Color Rendering and Consistency: With a high color rendering index (CRI), these strips ensure vibrant and consistent color across the lighting.
- Compliance: All materials comply with RoHS, CE, and REACH standards, ensuring safety and environmental friendliness.
- Flexible Installation: Easily bendable and comes with 3M adhesive tape on the back for straightforward installation.
- Beam Angle: The 180° beam angle offers wide coverage, ideal for consistent, ambient lighting.
- Cuttable Design: The strip can be cut to specific lengths as needed for customized installations.
RGBW SCOB LED Strip Specification
Product Features
- LED Quantity:280 LEDs per meter
- PCB Width: 10mm
- Voltage: 24V
- Color Temperatures: RGBW
- Waterproof Ratings: Available in IP20, IP65, IP67, and IP68, offering versatility for various environments.
Customization: Options to customize LED quantity, PCB width, color temperature, CRI, and waterproof level to meet specific project needs.
Product Specification
| Part NO: | RGBW SCOB |
| LED Qty: | 280pcs per meter |
| CRI (RA) | >90 |
| PCB Width IP20: | 10mm |
| Input Voltage: | DC24V |
| Watts: | 16W |
| Color: | Red，Green，Blue，White |
| PCB color: | White |
| IP Grade: | IP20 |
| Beam angle: | 180 degree |
| Certification: | CE; RoHS |
| Max Run: | 5M |
Products Details
01.New Technology with SMD Chips
The latest COB LED strips use SMD chips instead of traditional flip-chip designs. Traditional COB strips were made with flip-chips directly attached to the PCB, which made them more prone to failure and limited their waterproofing options. RGBW SCOB LED Strip combine COB and traditional LED strip methods, with SMD chips securely attached to the PCB, making them more durable, less prone to detachment, and compatible with various waterproofing techniques.
02.Increased Luminous Efficiency
The RGBW SCOB LED Strip achieves a 30% increase in luminous efficiency, reaching 140-150 LM/W compared to the typical 110 LM/W of standard COB strips. This enhances light output, ensures uniform color rendering, and provides a soft, non-glaring linear lighting effect.
03.Wide Viewing Angle
The COB LED strip offers a viewing angle of up to 180 degrees, compared to the typical 120-degree angle in standard SMD LED strips. This is achieved by placing the chip directly on the PCB and covering it with phosphor, which results in fewer dark spots and a broader light spread.
04.Outstanding CCT Uniformity
With an experienced engineering team, we maintain exceptional Correlated Color Temperature (CCT) consistency across continuous orders, achieving a 3-step MacAdam ellipse (3 SDCM) for color uniformity. This ensures that each order will match in color temperature and brightness, delivering reliable and consistent quality to customers.
05.22 AWG Pure Copper Wire
We use high-quality 22 AWG pure copper wire for connectivity. Each LED strip end is stripped to 3/8 inches for easy wiring, focusing on durability and effective power transmission.
06. Relatively high luminous efficiency
The RGBW SCOB LEDs use 2020SMD. 2020SMD strips typically use high-efficiency LED chips, and although each LED is less bright than a 5050SMD, the overall luminous efficacy is typically higher due to their small size and high alignment density. For environments that require more uniform light but not as much brightness, 2020SMD strips can provide a more suitable effect.
07.Waterproof Level
Non waterproof type
Extruded Silicone waterproof
Put in tube waterproof
Images of RGBW SCOB LED Strip
Here is some of product show in real situation:
Videos of RGBW SCOB LED Strip
Custom LED Strip Supplier & Manufacturer
LEDWorker is a leading manufacturer and supplier of high-quality LED strip lights, specializing in customized solutions for residential, commercial, and industrial applications. Our automated production lines ensure product consistency and quality, enabling us to provide reliable, energy-efficient lighting solutions. We offer extensive OEM and ODM services, tailoring LED strips to meet specific requirements such as LED density, PCB width, color temperature, and waterproofing level.
Our commitment to quality is underscored by certifications, including CE and RoHS, ensuring safety and environmental friendliness. With competitive pricing, flexible order quantities, and a dedicated support team, LEDWorker is a trusted partner for all LED strip lighting needs.
Customizing LED Strip Components:
1. Customizing LED Quantity:
Based on customer requirements, the number of LEDs per meter can be adjusted. Changing the density of LEDs affects the strip's lighting effect, with higher densities providing better linearity. Additionally, adjusting the arrangement of LEDs impacts the brightness and voltage drop across the strip, allowing for tailored lighting performance.
2. Customizing PCB Boards:
LED strips can have customized PCB boards to suit different installation environments. For narrow spaces, thinner strips can be produced, while for higher brightness needs, wider PCBs may be used to enhance heat dissipation. Moreover, double or triple-row LED arrangements can be achieved by expanding the PCB width to deliver the desired lighting effects.
3. Customizing Waterproofing:
Depending on the intended usage environment, various waterproof levels can be applied. For instance, IP20 indicates no waterproofing, IP65 is gel-coated, and IP67 uses tubing or extrusion methods for waterproofing. For outdoor applications like neon LED strips, IP67 is commonly used, and IP68 offers the highest level of waterproofing with considerations for plug and cable sealing to ensure complete water resistance.
This level of customization ensures that clients get the most suitable LED strip solutions for their specific projects, whether for indoor decor or demanding outdoor lighting installations.
4. Custom Packaging:
Single-color LED strips are often used for home and commercial decor, and we provide packaging customization to cater to wholesalers. This includes custom labels, special bags, boxes, and display stands, offering a one-stop service experience for our clients.
Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.
For any inquiries, our sales team is available 24/7 to provide comprehensive support.
With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.
Dimensions
Installation
(1) Paste Installation:
This Installation Method is Generally Used for the Waterproof Environment,
And the High-Viscosity 3m Adhesive is Attached to the Back of the Lamp Strip,
Which Can Be Directly Pasted on the Required Solid. The Surface of the Media.
Easy To Use And Easy To Install
Tear Off The Adhesive Tape
Title
Accessories
Connectors
Aluminum Profiles
Power Supply
RGB Controller
How to cut and connect it
Cut the COB on the cut mark
Take the 3M tape out.
Put the strip with the connector and connect it together
press the PIN into the PCB
After cut COB led strip lights and connect it together
