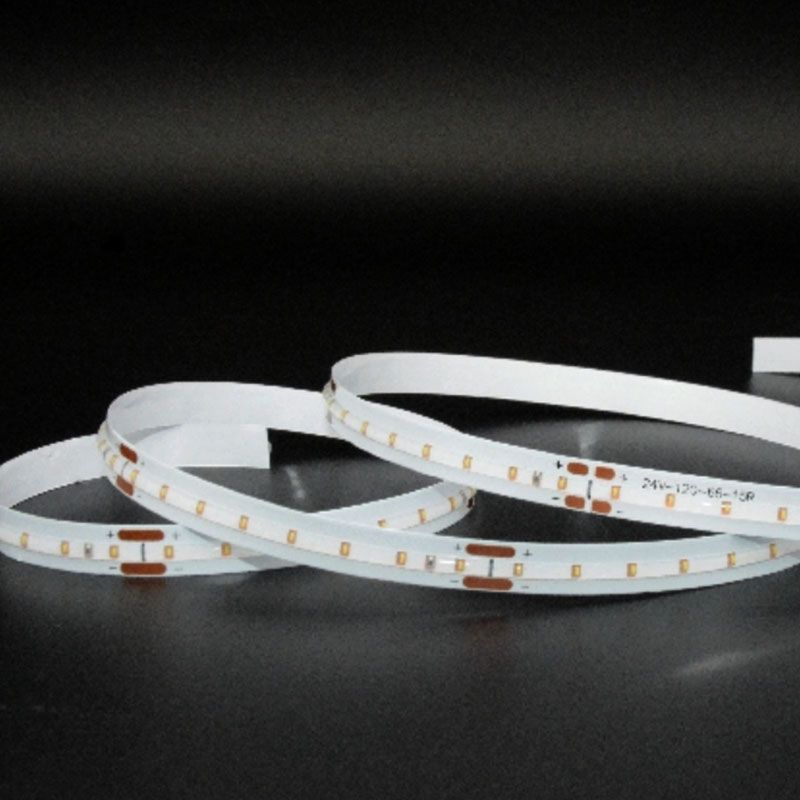

CSP LED Strip
- Utilizes CSP (Chip Scale Package) LEDs: Compact size, wide beam angle, and excellent color consistency.
- High temperature resistance, superior heat dissipation, and reduced light decay.
- Flexible design with a compact structure.
- CSP & FPC flexible reel-to-reel processing ensures high efficiency and customizable length cutting.
- Low-voltage drive, encapsulated with drip-proof glue for secure and reliable LED protection.
What is CSP LED Strip？
The CSP LED Strip is designed for indoor and outdoor decorative lighting. It adopts the innovative CSP + FPC (Flexible Printed Circuit) technology, offering flexibility, bendability, foldability, ultra-thin thickness, compact size, high precision, and strong conductivity. When paired with a silicone sleeve, it achieves an IP66 waterproof rating. The CSP chip utilizes flip-chip and Chip Scale Package (CSP) technology, delivering low thermal resistance and high electrical stability. Its compact size and enhanced performance ensure exceptional reliability.
Structure of CSP LEDs
The significantly reduced size of CSP packaging enables more flexible product design and a simpler, more compact structure. In terms of performance:
-
The small light-emitting surface and high luminous density of CSP LEDs allow precise optical control.
-
The flip-chip electrode design ensures balanced current distribution, supporting higher current drive capabilities.
-
Mitigation of the Droop effect and reduced light absorption create opportunities for improved luminous efficiency.
In manufacturing: -
The increased distance between the sapphire substrate, phosphor, and the chip’s MQW (Multi-Quantum Well) region lowers phosphor temperature, resulting in higher light conversion efficiency.
Why Choose CSP LED Strip?
-

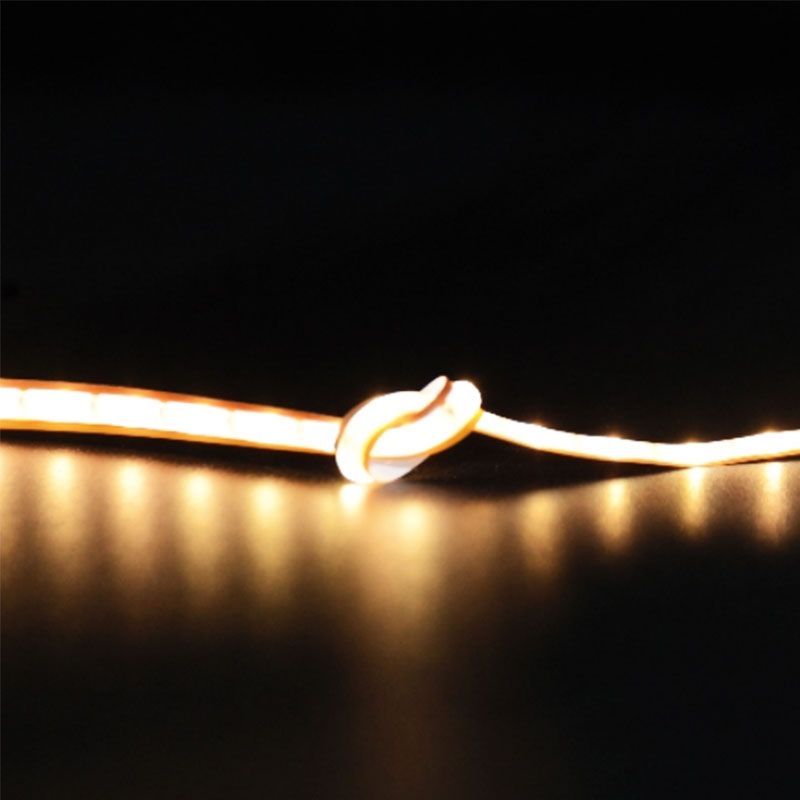

Compact CSP Packaging: As the smallest LED packaging form, CSP minimizes bending stress points, enhancing resistance to folding and pressure.
-
No Fragile Components: Unlike traditional LEDs, CSP strips eliminate weak points like brackets and gold wires.
-
2nd-Gen CSP Technology: Features a frame-assisted electrode design, further improving bendability and durability.
-
165-Degree Beam Angle: Achieved via flip-chip technology and five-sided light emission for uniform illumination.
-
Consistent Color Performance: The phosphor layer on CSP LEDs ensures even thickness and light distribution, eliminating yellow halos.
-
Adjustable Spacing: Compact CSP LEDs allow flexible spacing arrangements while maintaining stable, soft light output.
-
Robust Structure: No brackets or gold wires reduce failure risks.
-
Reduced Mechanical Stress: Smaller chip size minimizes force impact.
-
Enhanced Electrodes: The P-series CSP expands welding electrodes by 10x, boosting mechanical and electrical reliability.
CSP LED strips excel in:
-
High Density & Miniaturization: Ideal for intricate designs and tight spaces.
-
Customizable Widths & Colors: Adapts to diverse lighting scenarios.
-

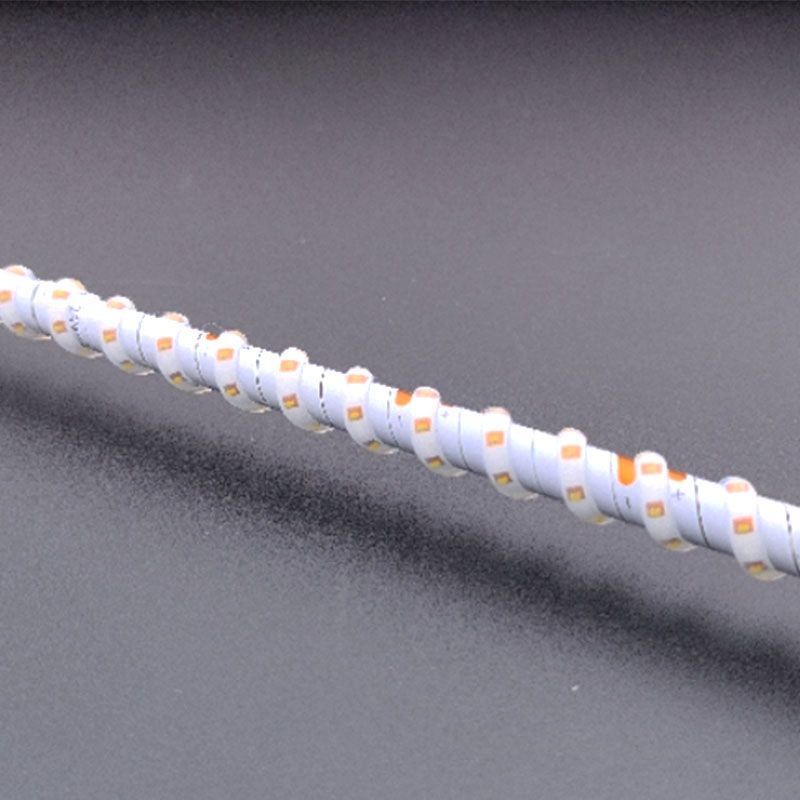

Bendable & Durable: Withstands harsh environments and frequent bending.
-
Wide-Angle Lighting & Smart Control: Perfect for curved installations and IoT integration.
-
Long Lifespan & High Efficiency: Combines energy savings with low maintenance.
Applications of CSP LED Strip Lights
The primary reason to choose CSP LED Strips over conventional LED strips is their high efficiency, superior reliability, and exceptional color consistency, making them ideal for diverse industries. Key application scenarios include:
-
Seamlessly integrates with smart systems for ambient or task lighting.
-
Compact size and bendability enable creative installations in ceilings, cabinets, or furniture.
-
Perfect for illuminated letters, channel letters, and backlit displays.
-
Uniform light output eliminates hotspots, ensuring crisp and vibrant visuals.
-
IP66 waterproof rating (with silicone sleeve) suits outdoor use in gardens, pathways, or architectural accents.
-
Wide 165° beam angle delivers expansive, glare-free illumination.
-
Ideal for retail stores, offices, and hospitality venues.
-
High-density lighting with dimmability enhances ambiance while reducing energy costs.
Single Color CSP LED Strips Index
Wholesale CSP LED Strips by Series
Leveraging state-of-the-art technology and premium manufacturing/R&D capabilities, we specialize in bulk orders for standard LED strips and custom OEM/ODM solutions across diverse formats.
Advanced Production & Efficiency
-
Highly Automated Lines: Our cutting-edge automated production systems allow one operator to manage multiple machines, boosting efficiency and slashing labor costs.
-
Precision & Consistency: Minimal human intervention ensures flawless production. Operators step in only for system alerts or exceptions, reducing errors and waste.
-
Scalability: Ideal for high-volume orders without compromising quality or lead times.
CSP LED Strip Product Range
We supply versatile CSP LED strips tailored to your needs:
-
Single-Color CSP Strips
-
Dual-Color CSP Strips
-
RGB & RGBW Color-Changing Strips
-
Dynamic Magic Color Strips
Key Features:
-
Pre-Installed 3M Adhesive Backing: Easy to bend, install, and reposition.
-
Environment-Specific Adhesives: Choose from moisture-resistant, high-temp, or industrial-grade 3M tapes.
Order Flexibility & Support
-
Fast Turnaround:
-
Standard Products: 3–5 business days.
-
Custom OEM/ODM Orders: 10–15 business days.
-
-
Free Design & Tech Support: Our team provides custom packaging design, cost-effective solutions, and detailed price evaluations.
Why Partner With Us?
-
Innovation-Driven: Stay ahead with our R&D-backed LED solutions.
-
Quality Assurance: Rigorous testing ensures durability and performance.
-
Competitive Pricing: Optimized production cuts costs without sacrificing quality.
Let’s Build Your Lighting Project Together!
Contact us today to discuss bulk orders, customization, or sample requests.
Customized Solutions for Single Color LED Strips
At LEDWorker, we offer professional custom services for our single-color LED strip lights to meet diverse needs, including designing manuals, labels, packaging, and custom logos.
Customization Options:
- LED Quantity per Meter: We adjust LED density to enhance linear light effects. Higher LED density creates a more seamless and even light output.
- Custom PCB Design: Based on the environment, we offer various PCB designs, including narrower widths for tight spaces, wider boards for better heat dissipation, double or triple-row configurations, and flexible S-shaped designs.
- Waterproofing Levels: We customize waterproofing to fit different environments. Options range from IP20 (non-waterproof) to IP68 (full waterproof), depending on installation needs.
- Custom Color Temperature: Standard temperatures are 3000K, 4000K, 6000K, 8000K, and 10000K, but we can create specific temperatures based on spectral chromaticity coordinates if required.
- Color Bin (MacAdam Step): We typically provide a three-step MacAdam binning standard but can offer single-step binning if needed for enhanced color consistency.
- CRI Customization: For clients with specific color rendering index (CRI) needs, we can offer CRI 90 or CRI 95 values, even for specialized environments like photography studios.
- Custom Packaging: We can create tailored packaging, including labels, bags, boxes, and display stands, ideal for retail and bulk clients.
Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.
For any inquiries, our sales team is available 24/7 to provide comprehensive support.
With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.
Certifications at LedWoker
At LEDWORKE, we are committed to our core values of customer-centricity and quality-first. Our goal is to build a modern, large-scale, and international company, and to that end, we have obtained various certifications to guarantee the quality and reliability of our products.
Certifications include:
ISO9001: Quality Management System certification.
ISO14001: Environmental Management certification.
TUV: Certification for safety and quality.
Our single-color LED strips have passed the following certifications:
CE: Ensures that our products comply with EU safety, health, and environmental requirements.
ROHS: Certifies that our products are free from hazardous substances.
ETL: Recognizes product compliance to North American safety standards.
REACH: Guarantees that our products adhere to regulations concerning the safe use of chemicals in the EU.
UL: Ensures that our products meet rigorous safety standards, especially for the U.S. market.
Additionally, we can provide specific testing reports per customer requests, including:
Salt Spray Test Reports: For evaluating corrosion resistance.
ERP Test Reports: Related to energy consumption and performance.
LM80 Test Reports: For long-term lumen maintenance.
EN 62471: Compliance with blue light hazard standards.
Testing
As a professional LED manufacturer, LedDesignsPro ensures that all of our LED strips undergo rigorous testing to guarantee top-notch quality and reliability. Our products are subjected to repeated cycles of thermal shock, high temperature and humidity storage, normal temperature aging, high humidity heat aging, and twist testing. Additionally, we utilize the Spektron coating integrating sphere to accurately measure the luminous flux (LM value) of our LED strips, maintaining strict quality control throughout the production process.
Below are the specific testing conditions, cycles, judgment criteria, and the equipment used:
| Test Item | Test Conditions | Duration/Cycle | Judgment Condition | Use Equipment |
|---|---|---|---|---|
| Thermal Shock | –40℃ 30min ↑↓ 5sec 100℃ 30min | 200 cycles | No cracked glue, no dead light | Hot and cold shock box |
| Humidity Heat Storage | Ta=85℃, RH=85%, Rated voltage | 1000 hours | Luminous decay ≤10%, no cracked glue, no dead light | High temperature and humidity box |
| Life Test | Ta=25℃, Rated voltage | 1000 hours | Luminous decay ≤3%, no cracked glue, no dead light | Room temperature aging seat |
| High Humidity Heat Life Test | 60℃, RH=90%, Rated voltage | 1000 hours | Luminous decay ≤10%, no cracked glue, no dead light | High temperature and high humidity aging box |
| Twist Test | 0.5M fixed at both ends, twisted 360°/cycle | 300 cycles | No dead light, no cracked glue | Distortion test machine |
