CSP Led Strip

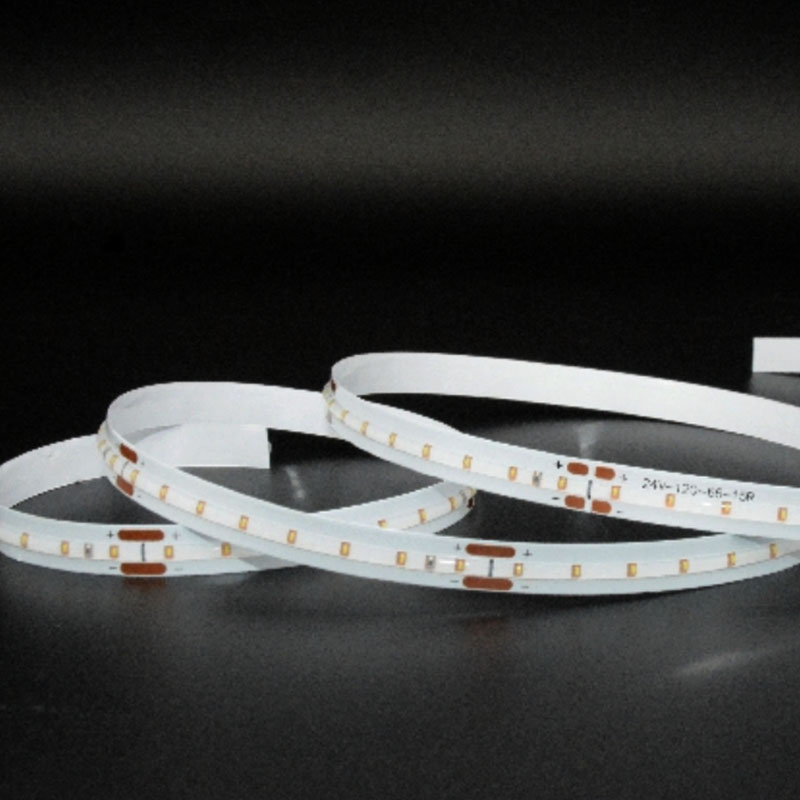

CSP LED Strip

  • Utilizes CSP (Chip Scale Package) LEDs: Compact size, wide beam angle, and excellent color consistency.
  • High temperature resistance, superior heat dissipation, and reduced light decay.
  • Flexible design with a compact structure.

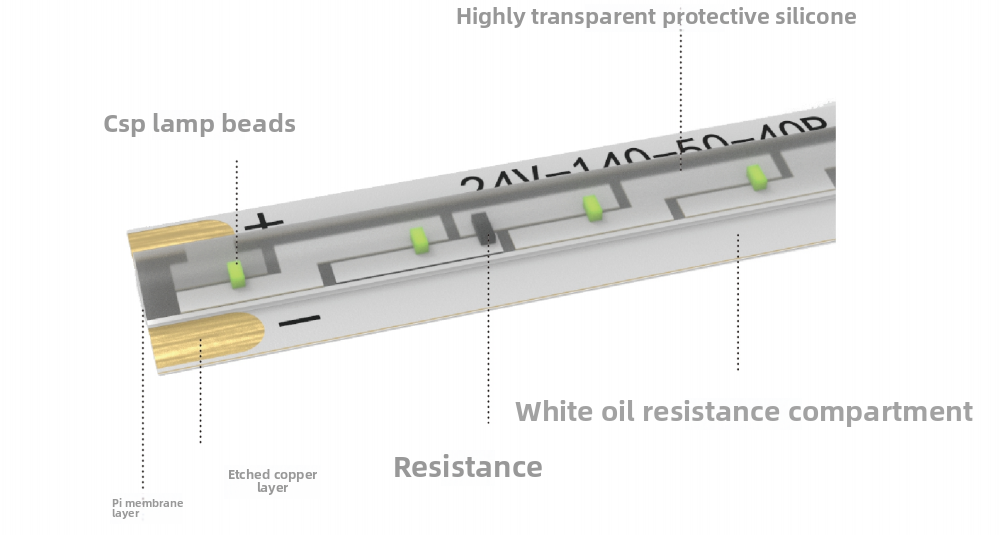

  • CSP & FPC flexible reel-to-reel processing ensures high efficiency and customizable length cutting.
  • Low-voltage drive, encapsulated with drip-proof glue for secure and reliable LED protection.

CSP LED Strip Supplier & Manufacturer

Shenzhen LEDWorker Lighting Co., Ltd is Located in Shenzhen City , established in 2012 . It has five fully automatic production lines. Monthly capacity of single product is 1 million meters to Handle Bulk Orders of Standard Led Strips and Various Forms of OEM & ODM LED Strip Lights.



We understand the importance how to provide the suitable products to help you earn the market. You need more than a supplier, We hope to establish long term business relationship and get the win win situation.



With sucessful experience of the support our customer and let them to be the No.1 in the market. We have confident to offer a very suitable products that will satisfy your requirements. If you have any request pls contact with our sales team, they will 24 hours 7 days working for you and give you one stop purchase experience.

What is CSP LED Strip？

The CSP LED Strip is designed for indoor and outdoor decorative lighting. It adopts the innovative CSP + FPC (Flexible Printed Circuit) technology, offering flexibility, bendability, foldability, ultra-thin thickness, compact size, high precision, and strong conductivity. When paired with a silicone sleeve, it achieves an IP66 waterproof rating. The CSP chip utilizes flip-chip and Chip Scale Package (CSP) technology, delivering low thermal resistance and high electrical stability. Its compact size and enhanced performance ensure exceptional reliability.

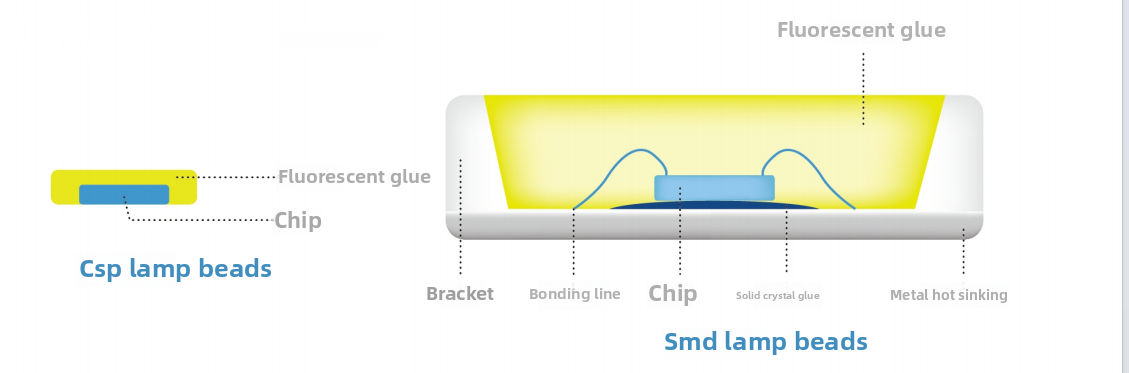

Structure of CSP LEDs
The significantly reduced size of CSP packaging enables more flexible product design and a simpler, more compact structure. In terms of performance:

  • The small light-emitting surface and high luminous density of CSP LEDs allow precise optical control.

  • The flip-chip electrode design ensures balanced current distribution, supporting higher current drive capabilities.

  • Mitigation of the Droop effect and reduced light absorption create opportunities for improved luminous efficiency.
    In manufacturing:

  • The increased distance between the sapphire substrate, phosphor, and the chip’s MQW (Multi-Quantum Well) region lowers phosphor temperature, resulting in higher light conversion efficiency.

Why Choose CSP LED Strip?

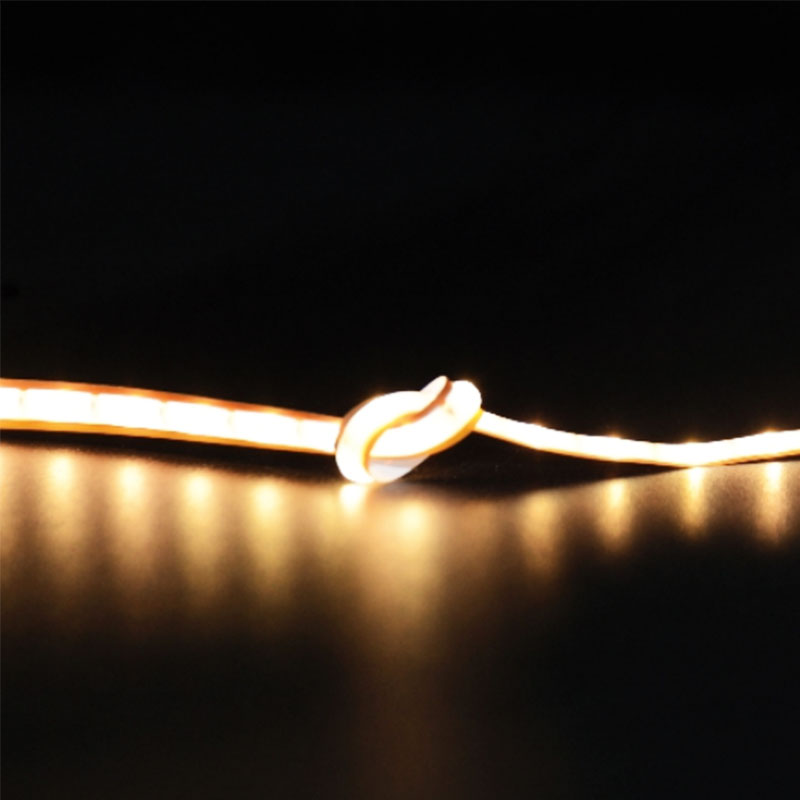

  • Unmatched Flexibility

    • Compact CSP Packaging: As the smallest LED packaging form, CSP minimizes bending stress points, enhancing resistance to folding and pressure.

    • No Fragile Components: Unlike traditional LEDs, CSP strips eliminate weak points like brackets and gold wires.

    • 2nd-Gen CSP Technology: Features a frame-assisted electrode design, further improving bendability and durability.

  • Soft & Stable Light Quality

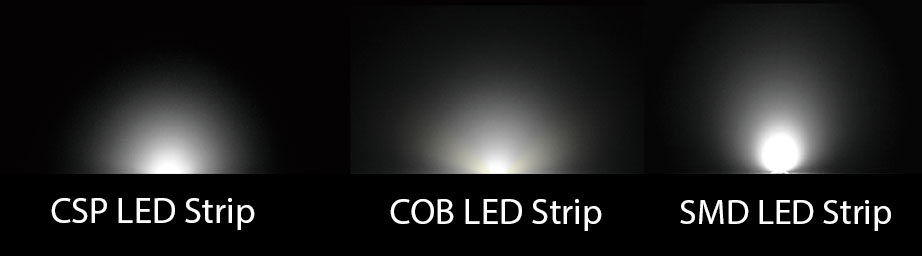

    • 165-Degree Beam Angle: Achieved via flip-chip technology and five-sided light emission for uniform illumination.

    • Consistent Color Performance: The phosphor layer on CSP LEDs ensures even thickness and light distribution, eliminating yellow halos.

    • Adjustable Spacing: Compact CSP LEDs allow flexible spacing arrangements while maintaining stable, soft light output.



  • Superior Reliability

    • Robust Structure: No brackets or gold wires reduce failure risks.

    • Reduced Mechanical Stress: Smaller chip size minimizes force impact.

    • Enhanced Electrodes: The P-series CSP expands welding electrodes by 10x, boosting mechanical and electrical reliability.

  • Versatility for All Applications

    CSP LED strips excel in:

    • High Density & Miniaturization: Ideal for intricate designs and tight spaces.

    • Customizable Widths & Colors: Adapts to diverse lighting scenarios.

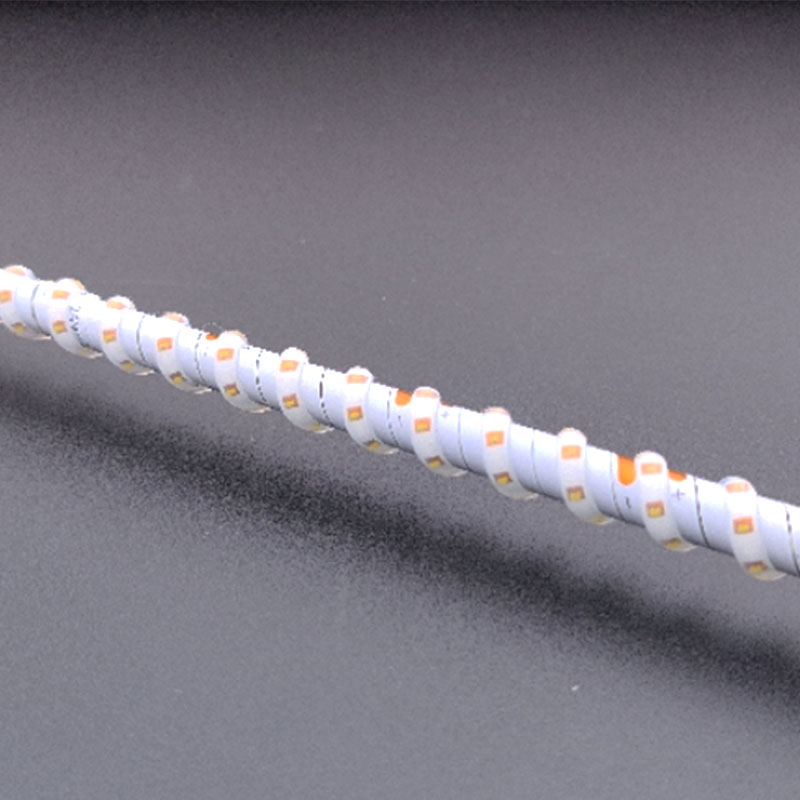

    • Bendable & Durable: Withstands harsh environments and frequent bending.

    • Wide-Angle Lighting & Smart Control: Perfect for curved installations and IoT integration.

    • Long Lifespan & High Efficiency: Combines energy savings with low maintenance.

Applications of CSP LED Strip Lights

The primary reason to choose CSP LED Strips over conventional LED strips is their high efficiency, superior reliability, and exceptional color consistency, making them ideal for diverse industries. Key application scenarios include:

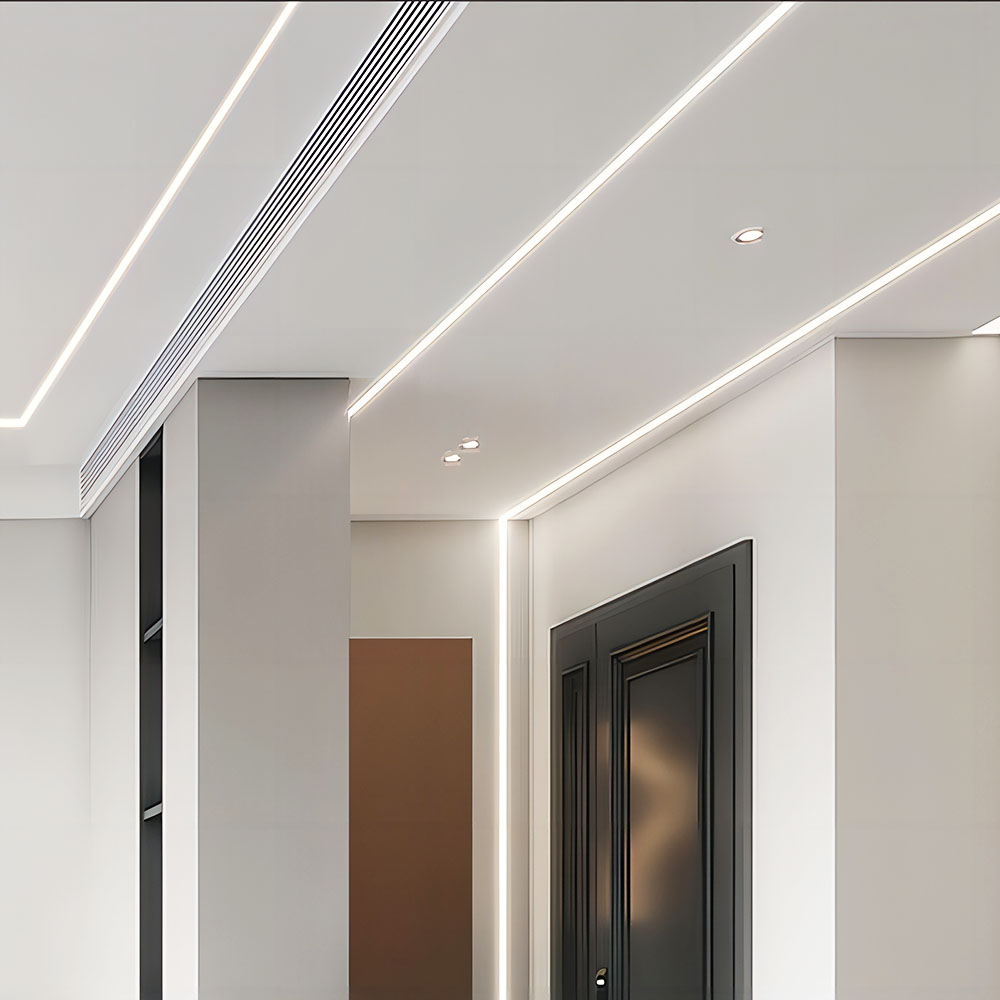

  • Smart Home Lighting

    • Seamlessly integrates with smart systems for ambient or task lighting.

    • Compact size and bendability enable creative installations in ceilings, cabinets, or furniture.

  • LED Signage & Advertising

    • Perfect for illuminated letters, channel letters, and backlit displays.

    • Uniform light output eliminates hotspots, ensuring crisp and vibrant visuals.

  • Landscape Lighting

    • IP66 waterproof rating (with silicone sleeve) suits outdoor use in gardens, pathways, or architectural accents.

    • Wide 165° beam angle delivers expansive, glare-free illumination.

  • Commercial Lighting

    • Ideal for retail stores, offices, and hospitality venues.

    • High-density lighting with dimmability enhances ambiance while reducing energy costs.

Single Color CSP LED Strips Index

Wholesale CSP LED Strips by Series

Leveraging state-of-the-art technology and premium manufacturing/R&D capabilities, we specialize in bulk orders for standard LED strips and custom OEM/ODM solutions across diverse formats.

Advanced Production & Efficiency

  • Highly Automated Lines: Our cutting-edge automated production systems allow one operator to manage multiple machines, boosting efficiency and slashing labor costs.

  • Precision & Consistency: Minimal human intervention ensures flawless production. Operators step in only for system alerts or exceptions, reducing errors and waste.

  • Scalability: Ideal for high-volume orders without compromising quality or lead times.

CSP LED Strip Product Range

We supply versatile CSP LED strips tailored to your needs:

  • Single-Color CSP Strips

  • Dual-Color CSP Strips

  • RGB & RGBW Color-Changing Strips

  • Dynamic Magic Color Strips

Key Features:

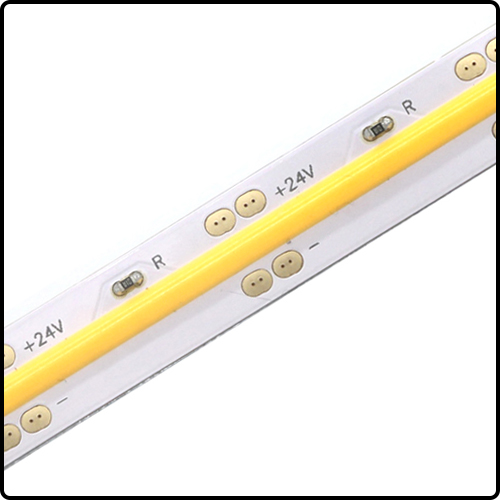

  • Pre-Installed 3M Adhesive Backing: Easy to bend, install, and reposition.

  • Environment-Specific Adhesives: Choose from moisture-resistant, high-temp, or industrial-grade 3M tapes.

Order Flexibility & Support

  • Fast Turnaround:

    • Standard Products: 3–5 business days.

    • Custom OEM/ODM Orders: 10–15 business days.

  • Free Design & Tech Support: Our team provides custom packaging design, cost-effective solutions, and detailed price evaluations.

Why Partner With Us?

  1. Innovation-Driven: Stay ahead with our R&D-backed LED solutions.

  2. Quality Assurance: Rigorous testing ensures durability and performance.

  3. Competitive Pricing: Optimized production cuts costs without sacrificing quality.

Let’s Build Your Lighting Project Together!
Contact us today to discuss bulk orders, customization, or sample requests.

Customized Solutions for Single Color LED Strips

At LEDWorker, we offer professional custom services for our single-color LED strip lights to meet diverse needs, including designing manuals, labels, packaging, and custom logos.

Customization Options:

  • LED Quantity per Meter: We adjust LED density to enhance linear light effects. Higher LED density creates a more seamless and even light output.
  • Custom PCB Design: Based on the environment, we offer various PCB designs, including narrower widths for tight spaces, wider boards for better heat dissipation, double or triple-row configurations, and flexible S-shaped designs.

  • Waterproofing Levels: We customize waterproofing to fit different environments. Options range from IP20 (non-waterproof) to IP68 (full waterproof), depending on installation needs.



  • Custom Color Temperature: Standard temperatures are 3000K, 4000K, 6000K, 8000K, and 10000K, but we can create specific temperatures based on spectral chromaticity coordinates if required.

  • Color Bin (MacAdam Step): We typically provide a three-step MacAdam binning standard but can offer single-step binning if needed for enhanced color consistency.
  • CRI Customization: For clients with specific color rendering index (CRI) needs, we can offer CRI 90 or CRI 95 values, even for specialized environments like photography studios.
  • Custom Packaging: We can create tailored packaging, including labels, bags, boxes, and display stands, ideal for retail and bulk clients.

Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.

For any inquiries, our sales team is available 24/7 to provide comprehensive support.

With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.

Certifications at LedWoker

At LEDWORKE, we are committed to our core values of customer-centricity and quality-first. Our goal is to build a modern, large-scale, and international company, and to that end, we have obtained various certifications to guarantee the quality and reliability of our products.
Certifications include:
ISO9001: Quality Management System certification.
ISO14001: Environmental Management certification.
TUV: Certification for safety and quality.
Our single-color LED strips have passed the following certifications:
CE: Ensures that our products comply with EU safety, health, and environmental requirements.
ROHS: Certifies that our products are free from hazardous substances.
ETL: Recognizes product compliance to North American safety standards.
REACH: Guarantees that our products adhere to regulations concerning the safe use of chemicals in the EU.
UL: Ensures that our products meet rigorous safety standards, especially for the U.S. market.
Additionally, we can provide specific testing reports per customer requests, including:
Salt Spray Test Reports: For evaluating corrosion resistance.
ERP Test Reports: Related to energy consumption and performance.
LM80 Test Reports: For long-term lumen maintenance.
EN 62471: Compliance with blue light hazard standards.

Text Report Download

Click For More Certificates

Testing

As a professional LED manufacturer, LedDesignsPro ensures that all of our LED strips undergo rigorous testing to guarantee top-notch quality and reliability. Our products are subjected to repeated cycles of thermal shock, high temperature and humidity storage, normal temperature aging, high humidity heat aging, and twist testing. Additionally, we utilize the Spektron coating integrating sphere to accurately measure the luminous flux (LM value) of our LED strips, maintaining strict quality control throughout the production process.

Below are the specific testing conditions, cycles, judgment criteria, and the equipment used:

Test Item Test Conditions Duration/Cycle Judgment Condition Use Equipment
Thermal Shock –40℃ 30min ↑↓ 5sec 100℃ 30min 200 cycles No cracked glue, no dead light Hot and cold shock box
Humidity Heat Storage Ta=85℃, RH=85%, Rated voltage 1000 hours Luminous decay ≤10%, no cracked glue, no dead light High temperature and humidity box
Life Test Ta=25℃, Rated voltage 1000 hours Luminous decay ≤3%, no cracked glue, no dead light Room temperature aging seat
High Humidity Heat Life Test 60℃, RH=90%, Rated voltage 1000 hours Luminous decay ≤10%, no cracked glue, no dead light High temperature and high humidity aging box
Twist Test 0.5M fixed at both ends, twisted 360°/cycle 300 cycles No dead light, no cracked glue Distortion test machine

Why Wholesale CSP LED Strip In Bulk From Us？

Choosing to wholesale single color CSP LED strips from LedDesignsPro comes with numerous benefits designed to meet the needs of your business:

  • Quality and Safety

    At LedDesignsPro, we prioritize quality and safety. All of our single color LED strips are manufactured using the finest materials and undergo rigorous testing to ensure they meet the highest standards. Every product is certified with CE and RoHS certifications, guaranteeing that our LED strips are both safe and reliable for a variety of applications.

  • Competitive Pricing

    By producing our own LED chips and controlling every step of the manufacturing process, we are able to offer our products at highly competitive prices. This allows you to maximize your profit margins without compromising on quality.

  • Customizable Solutions

    We understand that different projects have unique requirements. That’s why we offer comprehensive customization options, including LED density, PCB width, waterproofing levels, and color temperature. Whatever your project demands, we can deliver LED strips tailored to your exact specifications.

  • Production Capabilities

    With our advanced manufacturing facilities and high production capacity, LedDesignsPro is equipped to handle bulk orders with ease. Whether you need thousands of meters for a large commercial project or a specific design for a niche market, we have the capacity to meet your demands efficiently and on time.

  • Fully Support

    Our commitment to excellent customer service doesn’t end with the sale. We offer 24/7 support to ensure that your wholesale experience is seamless from start to finish. Our team is always ready to assist you with any inquiries, provide technical support, or help with logistics to ensure timely delivery.

  • Proven Track Record

    We have built long-term relationships with clients worldwide, including well-known brands and large-scale distributors. Our consistent product quality, reliable service, and flexible solutions have earned us a reputation as a trusted supplier in the LED lighting industry.

FAQs

Here are top asked questions, feel free to contact us for more details.

  • What is CSP LED strip?

    A CSP (Chip Scale Package) LED strip is a lighting product where LED chips are directly packaged onto a substrate. Compared to traditional LED strips, CSP strips use smaller LED chips and eliminate intermediate packaging layers, achieving higher brightness, improved heat dissipation, and superior luminous efficiency.

  • Are CSP LED Chips Good?

    • SMD Strips: Widely used, versatile in size, and highly adaptable.

    • COB Strips: Popular for seamless linear lighting effects.

    • CSP Strips: Represent the next-gen technology with flip-chip design and chip-scale packaging, offering:

      • Ultra-compact size

      • Low thermal resistance

      • Stable electrical performance

      • Enhanced durability
        CSP strips are ideal for applications demanding miniaturization and high reliability.

  • What is CCT in LED Strips?

    • CCT (Correlated Color Temperature) refers to the color tone of light, measured in Kelvin (K). Our dual-color LED strips allow adjustable CCT from 2700K (warm white) to 6500K (cool white), controlled via remotes or smart systems. This flexibility meets diverse lighting needs, from cozy homes to vibrant workspaces.

Inspire Creative Lighting With LedDesignsPro!

We are here for all your business needs and questions.

Contact Us Today

RGBW SCOB LED Strip

RGBW SCOB LED Strip

  • Enhanced Stability: Utilizes SMD LED chips instead of flip chips, providing greater stability.
  • Increased Light Efficiency: Light output efficiency is improved by 30%, resulting in uniform illumination.
  • High Color Rendering and Consistency: With a high color rendering index (CRI), these strips ensure vibrant and consistent color across the lighting.
  • Compliance: All materials comply with RoHS, CE, and REACH standards, ensuring safety and environmental friendliness.
  • Flexible Installation: Easily bendable and comes with 3M adhesive tape on the back for straightforward installation.
  • Beam Angle: The 180° beam angle offers wide coverage, ideal for consistent, ambient lighting.
  • Cuttable Design: The strip can be cut to specific lengths as needed for customized installations.

What is RGBW SCOB LED Strip ?

The RGBW SCOB LED Strip is a type of LED strip light that uses a 20*20mm SMD chip, soldered directly onto the PCB board, offering enhanced stability and durability compared to traditional COB strips.

Unlike older COB strips that use flip-chip technology, which is prone to dead LEDs and limits waterproofing options, the RGBW SCOB LED Strip combines COB (Chip on Board) with SMD (Surface Mounted Device) technology.

This integration results in a more robust LED strip where the SMD chips are less likely to detach, allowing it to support various waterproofing methods, including drip-proof applications.

For further insights, you can view an explanatory video here.

RGBW SCOB LED Strip Specification

  • Product Features

    1. LED Quantity:280 LEDs per meter
    2. PCB Width: 10mm
    3. Voltage: 24V
    4. Color Temperatures: RGBW
    5. Waterproof Ratings: Available in IP20, IP65, IP67, and IP68, offering versatility for various environments.

    Customization: Options to customize LED quantity, PCB width, color temperature, CRI, and waterproof level to meet specific project needs.

  • Product Specification

    Part NO: RGBW  SCOB
    LED Qty: 280pcs per meter
    CRI (RA) >90
    PCB Width IP20: 10mm
    Input Voltage: DC24V
    Watts: 16W
    Color: Red，Green，Blue，White
    PCB color: White
    IP Grade: IP20
    Beam angle: 180 degree
    Certification: CE; RoHS
    Max Run: 5M

  • Products Details

    01.New Technology with SMD Chips

    The latest COB LED strips use SMD chips instead of traditional flip-chip designs. Traditional COB strips were made with flip-chips directly attached to the PCB, which made them more prone to failure and limited their waterproofing options. RGBW  SCOB LED Strip combine COB and traditional LED strip methods, with SMD chips securely attached to the PCB, making them more durable, less prone to detachment, and compatible with various waterproofing techniques.

    02.Increased Luminous Efficiency

    The RGBW  SCOB LED Strip achieves a 30% increase in luminous efficiency, reaching 140-150 LM/W compared to the typical 110 LM/W of standard COB strips. This enhances light output, ensures uniform color rendering, and provides a soft, non-glaring linear lighting effect.

    03.Wide Viewing Angle

    The COB LED strip offers a viewing angle of up to 180 degrees, compared to the typical 120-degree angle in standard SMD LED strips. This is achieved by placing the chip directly on the PCB and covering it with phosphor, which results in fewer dark spots and a broader light spread.

    04.Outstanding CCT Uniformity

    With an experienced engineering team, we maintain exceptional Correlated Color Temperature (CCT) consistency across continuous orders, achieving a 3-step MacAdam ellipse (3 SDCM) for color uniformity. This ensures that each order will match in color temperature and brightness, delivering reliable and consistent quality to customers.

    05.22 AWG Pure Copper Wire

    We use high-quality 22 AWG pure copper wire for connectivity. Each LED strip end is stripped to 3/8 inches for easy wiring, focusing on durability and effective power transmission.

    06.  Relatively high luminous efficiency

    The RGBW SCOB LEDs use 2020SMD. 2020SMD strips typically use high-efficiency LED chips, and although each LED is less bright than a 5050SMD, the overall luminous efficacy is typically higher due to their small size and high alignment density. For environments that require more uniform light but not as much brightness, 2020SMD strips can provide a more suitable effect.

    07.Waterproof Level

    Non waterproof type

    Extruded Silicone waterproof

    Put in tube waterproof

    Click to see a video on waterproofing options

Images of RGBW SCOB LED Strip

Here is some of product show in real situation:

Videos of RGBW SCOB LED Strip

Custom LED Strip Supplier & Manufacturer

LEDWorker is a leading manufacturer and supplier of high-quality LED strip lights, specializing in customized solutions for residential, commercial, and industrial applications. Our automated production lines ensure product consistency and quality, enabling us to provide reliable, energy-efficient lighting solutions. We offer extensive OEM and ODM services, tailoring LED strips to meet specific requirements such as LED density, PCB width, color temperature, and waterproofing level.

Our commitment to quality is underscored by certifications, including CE and RoHS, ensuring safety and environmental friendliness. With competitive pricing, flexible order quantities, and a dedicated support team, LEDWorker is a trusted partner for all LED strip lighting needs.

Customizing LED Strip Components:

1. Customizing LED Quantity:
Based on customer requirements, the number of LEDs per meter can be adjusted. Changing the density of LEDs affects the strip's lighting effect, with higher densities providing better linearity. Additionally, adjusting the arrangement of LEDs impacts the brightness and voltage drop across the strip, allowing for tailored lighting performance.

2. Customizing PCB Boards:
LED strips can have customized PCB boards to suit different installation environments. For narrow spaces, thinner strips can be produced, while for higher brightness needs, wider PCBs may be used to enhance heat dissipation. Moreover, double or triple-row LED arrangements can be achieved by expanding the PCB width to deliver the desired lighting effects.

3. Customizing Waterproofing:
Depending on the intended usage environment, various waterproof levels can be applied. For instance, IP20 indicates no waterproofing, IP65 is gel-coated, and IP67 uses tubing or extrusion methods for waterproofing. For outdoor applications like neon LED strips, IP67 is commonly used, and IP68 offers the highest level of waterproofing with considerations for plug and cable sealing to ensure complete water resistance.

This level of customization ensures that clients get the most suitable LED strip solutions for their specific projects, whether for indoor decor or demanding outdoor lighting installations.

4. Custom Packaging:
Single-color LED strips are often used for home and commercial decor, and we provide packaging customization to cater to wholesalers. This includes custom labels, special bags, boxes, and display stands, offering a one-stop service experience for our clients.

Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.

For any inquiries, our sales team is available 24/7 to provide comprehensive support.

With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.

Dimensions

Connect Drawing

RGBW SCOB LED Strip Application

SCOB LED strips are widely used in the LED lighting industry and are gradually becoming a mainstream product. They are primarily utilized in:

  • Outdoor Lighting：RGBW SCOB LED Strip are widely used in outdoor applications, including landscape lighting, building façades, signage, pathways, and outdoor sports areas, providing energy-efficient, durable, and flexible lighting solutions.
  • Mall and Hotel Decor：RGBW SCOB LED Strip, known for high color rendering and consistent light, are widely used in retail and hotel decor, creating depth and ambiance in various spaces. Warm tones add comfort, while green LEDs accentuate park foliage, and yellow LEDs outline water features. Warm-tone LEDs are also used to outline building exteriors.
  • KTV, Bars, and Entertainment Venues：RGBW SCOB LED Strip, with their brightness and vivid colors, are used in entertainment spaces to create a unique atmosphere and visual appeal.

Installation

(1) Paste Installation:

This Installation Method is Generally Used for the Waterproof Environment,

And the High-Viscosity 3m Adhesive is Attached to the Back of the Lamp Strip,

Which Can Be Directly Pasted on the Required Solid. The Surface of the Media.

  • Easy To Use And Easy To Install

  • Tear Off The Adhesive Tape

Accessories

  •  Connectors

  • Aluminum Profiles

  • Power Supply

  • RGB Controller

How to cut and connect it

  • Cut the COB on the cut mark

  •  Take the 3M tape out.

  • Put the strip with the connector and connect it together

  • press the PIN into the PCB

  • After cut COB led strip lights and connect it together

How we guarantee the quality

As a professional LED manufacturer, we ensure that all our LED strips undergo rigorous testing to guarantee their quality and durability. Below are the specific tests, conditions, cycles, criteria, and equipment used to maintain high product standards:

Product Reliability Project

Test Item

Test Conditions

Duration/Cycle

Judgment condition

Use equipment

Thermal Shock

–40℃ 30min↑↓5sec100℃ 30min

200cycles

No cracked glue, no dead light

Hot and cold shock box

Humidity Heat Storage

Ta=85℃、RH=85% Rated voltage

1000hr

Luminous decay≤10%,no cracked glue, no dead light

High temperature and humidity box

Life Test

Ta=25℃ Rated voltage

1000hr

Luminous decay≤3%,no cracked glue, no dead light

Room temperature aging seat

High Humidity Heat Life Test

60℃ RH=90% Rated voltage

1000hr

Luminous decay≤10%,no cracked glue, no dead light

High temperature and high humidity aging box

Twist Test

360°/cycle Fixed and twisted at both ends

300

No dead light, no cracked glue

Distortion test machine

Packing

FAQs

Here is the top frequent asked questions. If you are still not very clear, feel free to content our consultant for more details.

We offer FREE SAMPLES for your business.

  • What is the lifespan of LED strip lights?

    LED strip lights generally have a lifespan of around 30,000 to 50,000 hours, depending on factors like environmental conditions, material quality,

    and LED chip quality. High-quality materials, such as superior LED chips and durable circuit boards, can ensure the longevity of LED strips, often reaching or exceeding 50,000 hours.

  • Can you cut LED strips and they still work?

    Yes, LED strips can be cut and will continue to work if handled properly. After cutting, it is essential to secure the ends to prevent short circuits.

     This can be done by carefully soldering the cut ends or using connectors specifically designed for LED strips to maintain a safe and functional connection.

Inspire Creative Lighting With LedDesignsPro!

We are here for all your business needs and questions.

Contact Us Today for Free Catalog

Tunable White SCOB LED Strip

Tunable White SCOB LED Strip

  • Enhanced Stability: Utilizes SMD LED chips instead of flip chips, providing greater stability.
  • Increased Light Efficiency: Light output efficiency is improved by 30%, resulting in uniform illumination.
  • High Color Rendering and Consistency: With a high color rendering index (CRI), these strips ensure vibrant and consistent color across the lighting.
  • Compliance: All materials comply with RoHS, CE, and REACH standards, ensuring safety and environmental friendliness.
  • Flexible Installation: Easily bendable and comes with 3M adhesive tape on the back for straightforward installation.
  • Beam Angle: The 180° beam angle offers wide coverage, ideal for consistent, ambient lighting.
  • Cuttable Design: The strip can be cut to specific lengths as needed for customized installations.

What is Tunable White SCOB LED Strip ?

The Tunable White LED Strip is a type of LED strip light that uses a 20*20mm SMD chip, soldered directly onto the PCB board, offering enhanced stability and durability compared to traditional COB strips.

Unlike older COB strips that use flip-chip technology, which is prone to dead LEDs and limits waterproofing options, the Tunable White LED Strip combines COB (Chip on Board) with SMD (Surface Mounted Device) technology.

This integration results in a more robust LED strip where the SMD chips are less likely to detach, allowing it to support various waterproofing methods, including drip-proof applications.

For further insights, you can view an explanatory video here.

Tunable White SCOB LED Strip Specification

  • Product Features

    1. LED Quantity:280 LEDs per meter
    2. PCB Width: 10mm
    3. Voltage: 24V
    4. Color Temperatures:Adjustable between 2700K (warm white) and 6500K (cool white)
    5. Waterproof Ratings: Available in IP20, IP65, IP67, and IP68, offering versatility for various environments.

    Customization: Options to customize LED quantity, PCB width, color temperature, CRI, and waterproof level to meet specific project needs.

  • Product Specification

    Part NO: Tunable White  SCOB
    LED Qty: 280pcs per meter
    CRI (RA) >90
    PCB Width IP20: 10mm
    Input Voltage: DC24V
    Watts: 16W
    Color: 2700K+6500K
    PCB color: White
    IP Grade: IP20
    Beam angle: 180 degree
    Certification: CE; RoHS
    Max Run: 5M

  • Products Details

    01.New Technology with SMD Chips

    The latest COB LED strips use SMD chips instead of traditional flip-chip designs. Traditional COB strips were made with flip-chips directly attached to the PCB, which made them more prone to failure and limited their waterproofing options. Tunable White LED Strip combine COB and traditional LED strip methods, with SMD chips securely attached to the PCB, making them more durable, less prone to detachment, and compatible with various waterproofing techniques.

    02.Increased Luminous Efficiency

    The Tunable White  SCOB LED Strip achieves a 30% increase in luminous efficiency, reaching 140-150 LM/W compared to the typical 110 LM/W of standard COB strips. This enhances light output, ensures uniform color rendering, and provides a soft, non-glaring linear lighting effect.

    03.Wide Viewing Angle

    The COB LED strip offers a viewing angle of up to 180 degrees, compared to the typical 120-degree angle in standard SMD LED strips. This is achieved by placing the chip directly on the PCB and covering it with phosphor, which results in fewer dark spots and a broader light spread.

    04.Outstanding CCT Uniformity

    With an experienced engineering team, we maintain exceptional Correlated Color Temperature (CCT) consistency across continuous orders, achieving a 3-step MacAdam ellipse (3 SDCM) for color uniformity. This ensures that each order will match in color temperature and brightness, delivering reliable and consistent quality to customers.

    05.22 AWG Pure Copper Wire

    We use high-quality 22 AWG pure copper wire for connectivity. Each LED strip end is stripped to 3/8 inches for easy wiring, focusing on durability and effective power transmission.

    06.  Relatively high luminous efficiency

    The Tunable White LEDs use 2020SMD. 2020SMD strips typically use high-efficiency LED chips, and although each LED is less bright than a 5050SMD, the overall luminous efficacy is typically higher due to their small size and high alignment density. For environments that require more uniform light but not as much brightness, 2020SMD strips can provide a more suitable effect.

    07.Waterproof Level

    Non waterproof type

    Extruded Silicone waterproof

    Put in tube waterproof

    Click to see a video on waterproofing options

Images of Tunable White SCOB LED Strip

Here is some of product show in real situation:

Videos of Tunable White SCOB LED Strip

Custom LED Strip Supplier & Manufacturer

LEDWorker is a leading manufacturer and supplier of high-quality LED strip lights, specializing in customized solutions for residential, commercial, and industrial applications. Our automated production lines ensure product consistency and quality, enabling us to provide reliable, energy-efficient lighting solutions. We offer extensive OEM and ODM services, tailoring LED strips to meet specific requirements such as LED density, PCB width, color temperature, and waterproofing level.

Our commitment to quality is underscored by certifications, including CE and RoHS, ensuring safety and environmental friendliness. With competitive pricing, flexible order quantities, and a dedicated support team, LEDWorker is a trusted partner for all LED strip lighting needs.

Customizing LED Strip Components:

1. Customizing LED Quantity:
Based on customer requirements, the number of LEDs per meter can be adjusted. Changing the density of LEDs affects the strip's lighting effect, with higher densities providing better linearity. Additionally, adjusting the arrangement of LEDs impacts the brightness and voltage drop across the strip, allowing for tailored lighting performance.

2. Customizing PCB Boards:
LED strips can have customized PCB boards to suit different installation environments. For narrow spaces, thinner strips can be produced, while for higher brightness needs, wider PCBs may be used to enhance heat dissipation. Moreover, double or triple-row LED arrangements can be achieved by expanding the PCB width to deliver the desired lighting effects.

3. Customizing Waterproofing:
Depending on the intended usage environment, various waterproof levels can be applied. For instance, IP20 indicates no waterproofing, IP65 is gel-coated, and IP67 uses tubing or extrusion methods for waterproofing. For outdoor applications like neon LED strips, IP67 is commonly used, and IP68 offers the highest level of waterproofing with considerations for plug and cable sealing to ensure complete water resistance.

This level of customization ensures that clients get the most suitable LED strip solutions for their specific projects, whether for indoor decor or demanding outdoor lighting installations.

4. Custom Packaging:
Single-color LED strips are often used for home and commercial decor, and we provide packaging customization to cater to wholesalers. This includes custom labels, special bags, boxes, and display stands, offering a one-stop service experience for our clients.

Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.

For any inquiries, our sales team is available 24/7 to provide comprehensive support.

With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.

Dimensions

Connect Drawing

Tunable White SCOB LED Strip Application

Tunable White SCOB LED strips are widely used in the LED lighting industry and are gradually becoming a mainstream product. They are primarily utilized in:

  • Outdoor Lighting：Tunable White  SCOB LED Strip are widely used in outdoor applications, including landscape lighting, building façades, signage, pathways, and outdoor sports areas, providing energy-efficient, durable, and flexible lighting solutions.
  • Mall and Hotel Decor：Tunable White  SCOB LED Strip, known for high color rendering and consistent light, are widely used in retail and hotel decor, creating depth and ambiance in various spaces. Warm tones add comfort, while green LEDs accentuate park foliage, and yellow LEDs outline water features. Warm-tone LEDs are also used to outline building exteriors.
  • KTV, Bars, and Entertainment Venues：Tunable White  SCOB LED Strip, with their brightness and vivid colors, are used in entertainment spaces to create a unique atmosphere and visual appeal.

Installation

(1) Paste Installation:

This Installation Method is Generally Used for the Waterproof Environment,

And the High-Viscosity 3m Adhesive is Attached to the Back of the Lamp Strip,

Which Can Be Directly Pasted on the Required Solid. The Surface of the Media.

  • Easy To Use And Easy To Install

  • Tear Off The Adhesive Tape

  • Paste To Where You Need To Install

Accessories

  •  Connectors

  • Aluminum Profiles

  • Power Supply

  • Tunable White Dimmer Controller

How to cut and connect it

  • Cut the COB on the cut mark

  •  Take the 3M tape out.

  • Put the strip with the connector and connect it together

  • press the PIN into the PCB

  • After cut COB led strip lights and connect it together

How we guarantee the quality

As a professional LED manufacturer, we ensure that all our LED strips undergo rigorous testing to guarantee their quality and durability. Below are the specific tests, conditions, cycles, criteria, and equipment used to maintain high product standards:

Product Reliability Project

Test Item

Test Conditions

Duration/Cycle

Judgment condition

Use equipment

Thermal Shock

–40℃ 30min↑↓5sec100℃ 30min

200cycles

No cracked glue, no dead light

Hot and cold shock box

Humidity Heat Storage

Ta=85℃、RH=85% Rated voltage

1000hr

Luminous decay≤10%,no cracked glue, no dead light

High temperature and humidity box

Life Test

Ta=25℃ Rated voltage

1000hr

Luminous decay≤3%,no cracked glue, no dead light

Room temperature aging seat

High Humidity Heat Life Test

60℃ RH=90% Rated voltage

1000hr

Luminous decay≤10%,no cracked glue, no dead light

High temperature and high humidity aging box

Twist Test

360°/cycle Fixed and twisted at both ends

300

No dead light, no cracked glue

Distortion test machine

Packing

FAQs

Here is the top frequent asked questions. If you are still not very clear, feel free to content our consultant for more details.

We offer FREE SAMPLES for your business.

  • What is the lifespan of LED strip lights?

    LED strip lights generally have a lifespan of around 30,000 to 50,000 hours, depending on factors like environmental conditions, material quality,

    and LED chip quality. High-quality materials, such as superior LED chips and durable circuit boards, can ensure the longevity of LED strips, often reaching or exceeding 50,000 hours.

  • Can you cut LED strips and they still work?

    Yes, LED strips can be cut and will continue to work if handled properly. After cutting, it is essential to secure the ends to prevent short circuits.

     This can be done by carefully soldering the cut ends or using connectors specifically designed for LED strips to maintain a safe and functional connection.

Inspire Creative Lighting With LedDesignsPro!

We are here for all your business needs and questions.

Contact Us Today for Free Catalog

RGB SCOB LED Strip

RGB SCOB LED Strip

  • Enhanced Stability: Utilizes SMD LED chips instead of flip chips, providing greater stability.
  • Increased Light Efficiency: Light output efficiency is improved by 30%, resulting in uniform illumination.
  • High Color Rendering and Consistency: With a high color rendering index (CRI), these strips ensure vibrant and consistent color across the lighting.
  • Compliance: All materials comply with RoHS, CE, and REACH standards, ensuring safety and environmental friendliness.
  • Flexible Installation: Easily bendable and comes with 3M adhesive tape on the back for straightforward installation.
  • Beam Angle: The 180° beam angle offers wide coverage, ideal for consistent, ambient lighting.
  • Cuttable Design: The strip can be cut to specific lengths as needed for customized installations.

What is RGB SCOB LED Strip ?

The RGB SCOB LED Strip is a type of LED strip light that uses a 20*20mm SMD chip, soldered directly onto the PCB board, offering enhanced stability and durability compared to traditional COB strips.

Unlike older COB strips that use flip-chip technology, which is prone to dead LEDs and limits waterproofing options, the RGB SCOB LED Strip combines COB (Chip on Board) with SMD (Surface Mounted Device) technology.

This integration results in a more robust LED strip where the SMD chips are less likely to detach, allowing it to support various waterproofing methods, including drip-proof applications.

For further insights, you can view an explanatory video here.

RGB SCOB LED Strip Specification

  • Product Features

    1. LED Quantity:280 LEDs per meter
    2. PCB Width: 10mm
    3. Voltage: 24V
    4. Color Temperatures: RGB
    5. Waterproof Ratings: Available in IP20, IP65, IP67, and IP68, offering versatility for various environments.

    Customization: Options to customize LED quantity, PCB width, color temperature, CRI, and waterproof level to meet specific project needs.

  • Product Specification

    Part NO: RGB  SCOB
    LED Qty: 280pcs per meter
    CRI (RA) >90
    PCB Width IP20: 10mm
    Input Voltage: DC24V
    Watts: 16W
    Color: RGB
    PCB color: White
    IP Grade: IP20
    Beam angle: 180 degree
    Certification: CE; RoHS
    Max Run: 5M

  • Products Details

    01.New Technology with SMD Chips

    The latest COB LED strips use SMD chips instead of traditional flip-chip designs. Traditional COB strips were made with flip-chips directly attached to the PCB, which made them more prone to failure and limited their waterproofing options. RGB  SCOB LED Strip combine COB and traditional LED strip methods, with SMD chips securely attached to the PCB, making them more durable, less prone to detachment, and compatible with various waterproofing techniques.

    02.Increased Luminous Efficiency

    The RGB  SCOB LED Strip achieves a 30% increase in luminous efficiency, reaching 140-150 LM/W compared to the typical 110 LM/W of standard COB strips. This enhances light output, ensures uniform color rendering, and provides a soft, non-glaring linear lighting effect.

    03.Wide Viewing Angle

    The COB LED strip offers a viewing angle of up to 180 degrees, compared to the typical 120-degree angle in standard SMD LED strips. This is achieved by placing the chip directly on the PCB and covering it with phosphor, which results in fewer dark spots and a broader light spread.

    04.Outstanding CCT Uniformity

    With an experienced engineering team, we maintain exceptional Correlated Color Temperature (CCT) consistency across continuous orders, achieving a 3-step MacAdam ellipse (3 SDCM) for color uniformity. This ensures that each order will match in color temperature and brightness, delivering reliable and consistent quality to customers.

    05.22 AWG Pure Copper Wire

    We use high-quality 22 AWG pure copper wire for connectivity. Each LED strip end is stripped to 3/8 inches for easy wiring, focusing on durability and effective power transmission.

    06.  Relatively high luminous efficiency

    The RGB SCOB LEDs use 2020SMD. 2020SMD strips typically use high-efficiency LED chips, and although each LED is less bright than a 5050SMD, the overall luminous efficacy is typically higher due to their small size and high alignment density. For environments that require more uniform light but not as much brightness, 2020SMD strips can provide a more suitable effect.

    07.Waterproof Level

    Non waterproof type

    Extruded Silicone waterproof

    Put in tube waterproof

    Click to see a video on waterproofing options

    08.Excellent Color Rendering

    RGB SCOB LED strips offer outstanding color rendering capabilities, allowing for a wide range of vibrant colors. By combining three primary colors—red, green,and blue—this LED strip can produce an almost unlimited array of color combinations. This flexibility makes it suitable for a variety of industry projects where specific lightingtones are required to create different atmospheres, highlight features, or set moods.

Images of RGB SCOB LED Strip

Here is some of product show in real situation:

Videos of RGB SCOB LED Strip

Custom LED Strip Supplier & Manufacturer

LEDWorker is a leading manufacturer and supplier of high-quality LED strip lights, specializing in customized solutions for residential, commercial, and industrial applications. Our automated production lines ensure product consistency and quality, enabling us to provide reliable, energy-efficient lighting solutions. We offer extensive OEM and ODM services, tailoring LED strips to meet specific requirements such as LED density, PCB width, color temperature, and waterproofing level.

Our commitment to quality is underscored by certifications, including CE and RoHS, ensuring safety and environmental friendliness. With competitive pricing, flexible order quantities, and a dedicated support team, LEDWorker is a trusted partner for all LED strip lighting needs.

Customizing LED Strip Components:

1. Customizing LED Quantity:
Based on customer requirements, the number of LEDs per meter can be adjusted. Changing the density of LEDs affects the strip's lighting effect, with higher densities providing better linearity. Additionally, adjusting the arrangement of LEDs impacts the brightness and voltage drop across the strip, allowing for tailored lighting performance.

2. Customizing PCB Boards:
LED strips can have customized PCB boards to suit different installation environments. For narrow spaces, thinner strips can be produced, while for higher brightness needs, wider PCBs may be used to enhance heat dissipation. Moreover, double or triple-row LED arrangements can be achieved by expanding the PCB width to deliver the desired lighting effects.

3. Customizing Waterproofing:
Depending on the intended usage environment, various waterproof levels can be applied. For instance, IP20 indicates no waterproofing, IP65 is gel-coated, and IP67 uses tubing or extrusion methods for waterproofing. For outdoor applications like neon LED strips, IP67 is commonly used, and IP68 offers the highest level of waterproofing with considerations for plug and cable sealing to ensure complete water resistance.

This level of customization ensures that clients get the most suitable LED strip solutions for their specific projects, whether for indoor decor or demanding outdoor lighting installations.

4. Custom Packaging:
Single-color LED strips are often used for home and commercial decor, and we provide packaging customization to cater to wholesalers. This includes custom labels, special bags, boxes, and display stands, offering a one-stop service experience for our clients.

Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.

For any inquiries, our sales team is available 24/7 to provide comprehensive support.

With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.

Dimensions

Connect Drawing

RGB SCOB LED Strip Application

SCOB LED strips are widely used in the LED lighting industry and are gradually becoming a mainstream product. They are primarily utilized in:

  • Outdoor Lighting：RGB SCOB LED Strip are widely used in outdoor applications, including landscape lighting, building façades, signage, pathways, and outdoor sports areas, providing energy-efficient, durable, and flexible lighting solutions.
  • Mall and Hotel Decor：RGB SCOB LED Strip, known for high color rendering and consistent light, are widely used in retail and hotel decor, creating depth and ambiance in various spaces. Warm tones add comfort, while green LEDs accentuate park foliage, and yellow LEDs outline water features. Warm-tone LEDs are also used to outline building exteriors.
  • KTV, Bars, and Entertainment Venues：RGB SCOB LED Strip, with their brightness and vivid colors, are used in entertainment spaces to create a unique atmosphere and visual appeal.

Installation

(1) Paste Installation:

This Installation Method is Generally Used for the Waterproof Environment,

And the High-Viscosity 3m Adhesive is Attached to the Back of the Lamp Strip,

Which Can Be Directly Pasted on the Required Solid. The Surface of the Media.

  • Easy To Use And Easy To Install

  • Tear Off The Adhesive Tape

  • Paste To Where You Need To Install

Accessories

  •  Connectors

  • Aluminum Profiles

  • Power Supply

  • RGB Controller

How to cut and connect it

  • Cut the COB on the cut mark

  •  Take the 3M tape out.

  • Put the strip with the connector and connect it together

  • press the PIN into the PCB

  • After cut COB led strip lights and connect it together

How we guarantee the quality

As a professional LED manufacturer, we ensure that all our LED strips undergo rigorous testing to guarantee their quality and durability. Below are the specific tests, conditions, cycles, criteria, and equipment used to maintain high product standards:

Product Reliability Project

Test Item

Test Conditions

Duration/Cycle

Judgment condition

Use equipment

Thermal Shock

–40℃ 30min↑↓5sec100℃ 30min

200cycles

No cracked glue, no dead light

Hot and cold shock box

Humidity Heat Storage

Ta=85℃、RH=85% Rated voltage

1000hr

Luminous decay≤10%,no cracked glue, no dead light

High temperature and humidity box

Life Test

Ta=25℃ Rated voltage

1000hr

Luminous decay≤3%,no cracked glue, no dead light

Room temperature aging seat

High Humidity Heat Life Test

60℃ RH=90% Rated voltage

1000hr

Luminous decay≤10%,no cracked glue, no dead light

High temperature and high humidity aging box

Twist Test

360°/cycle Fixed and twisted at both ends

300

No dead light, no cracked glue

Distortion test machine

Packing

FAQs

Here is the top frequent asked questions. If you are still not very clear, feel free to content our consultant for more details.

We offer FREE SAMPLES for your business.

  • What is the lifespan of LED strip lights?

    LED strip lights generally have a lifespan of around 30,000 to 50,000 hours, depending on factors like environmental conditions, material quality,

    and LED chip quality. High-quality materials, such as superior LED chips and durable circuit boards, can ensure the longevity of LED strips, often reaching or exceeding 50,000 hours.

  • Can you cut LED strips and they still work?

    Yes, LED strips can be cut and will continue to work if handled properly. After cutting, it is essential to secure the ends to prevent short circuits.

     This can be done by carefully soldering the cut ends or using connectors specifically designed for LED strips to maintain a safe and functional connection.

Inspire Creative Lighting With LedDesignsPro!

We are here for all your business needs and questions.

Contact Us Today for Free Catalog

Dotless LED Line Series

Dotless LED Line

  • Voltage Options: Available in 5V, 12V, and 24V
  • Chip Design: Chips are directly mounted on the PCB, ensuring a dot-free light emission.
  • Width Options: Available in 8mm, 10mm, 12mm, and 14mm
  • LED Count Options: Available with 320, 360, 400, 450, 480, 576, 608, and 840 LEDs
  • High CRI (>90): High color rendering for even illumination
  • Color Options: Available in 2700K, 3000K, 4000K, 6000K, and red, green, blue, yellow. Dual color options, RGB, RGBW, RGBCW, dream white COB, dual-color COB, and dream RGB COB are also available.
  • Extended Lifespan: Up to 50,000 hours with minimal brightness decay over time.
  • Silicone Extrusion Process: Provides IP67 waterproof rating for added durability.
  • Easy Installation: Flexible, self-adhesive 3M backing for secure mounting.
  • Customizable Options: Customizable width, voltage, power, color temperature, and CRI.

Dotless LED Line Supplier & Manufacturer

Shenzhen LEDWorker Lighting Co., Ltd is Located in Shenzhen City , established in 2012 . It has five fully automatic production lines. Monthly capacity of single product is 1 million meters to Handle Bulk Orders of Standard Led Strips and Various Forms of OEM & ODM LED Strip Lights.

We understand the importance how to provide the suitable products to help you earn the market. You need more than a supplier, We hope to establish long term business relationship and get the win win situation.

With sucessful experience of the support our customer and let them to be the No.1 in the market. We have confident to offer a very suitable products that will satisfy your requirements. If you have any request pls contact with our sales team, they will 24 hours 7 days working for you and give you one stop purchase experience.

What is Dotless LED Line?

The Dotless LED Line strip is crafted using high-density chips with flip-chip technology and silicone extrusion. This innovative design enables a seamless, dot-free light output, resulting in a soft, continuous glow without visible light spots. The Dotless LED Line effectively addresses issues commonly seen with traditional LED strips, such as dark spots and shadows, providing a smooth, uninterrupted illumination. With an IP67 protection rating, it is suitable for both indoor and outdoor applications.

Comparison with Traditional LED Strips: When placed inside an aluminum profile, traditional LED strips like 2835, 5050, or even 2110 can reveal visible LED spots. However, the Dotless LED Line provides such uniform light distribution that it remains smooth and spot-free even within an aluminum channel, achieving an aesthetically pleasing, seamless effect.

Why Choose Dotless LED Line?

Dotless LED Line strips provide a soft, uniform light output without visible spots, making them ideal for visually appealing environments such as home decor or commercial displays. Here are several compelling reasons to choose Dotless LED:

  • Spotless Illumination

    With high chip density—often with hundreds of chips per meter—the Dotless LED Line delivers a smooth light without noticeable points, dark spots, or shadows.

  • Versatile Options

    A wide variety of styles and specifications are available, making it easy to tailor to specific environments and design needs. Choices include:

    • Color: Options include single color, dual color, RGB, RGBW, RGBCW, and dynamic color modes (like cool white, dual-tone, and RGB).
    • LED Density: Ranging from 320 to 840 LEDs per meter.
    • PCB Width: Available in sizes like 8, 10, 12, and 14mm, providing flexibility for diverse applications.

  • Efficient Heat Dissipation, Minimal Light Decay, and Long Life:

    The chips in Dotless LED strips are directly mounted on the PCB, which allows for efficient heat dissipation. This leads to reduced light decay, a prolonged lifespan, and lower maintenance costs.

  • Linear Lighting Effect

    Dotless LEDs emit an evenly distributed, soft glow that complements modern decor styles by adding depth and ambiance. With IP67 protection, they’re also suitable for outdoor installations, enhancing both indoor and outdoor environments with linear lighting.

  • Energy-Efficient, High Brightness, and Safe

    Dotless LEDs are highly energy-efficient, producing more brightness than traditional incandescent lights at lower wattages. Being low-voltage, they are safe to handle and install in various settings.

Applications of Dotless LED Line

The Dotless LED Line has become popular across the LED lighting industry, both for home and commercial use. It enhances ambient lighting in homes, showcases architectural elements, and adds atmosphere in commercial spaces, hotels, and entertainment venues. Here’s how it’s applied in various settings:

  • Residential Applications

    The Dotless LED Line is ideal for accentuating spaces with soft, continuous lighting. It’s often used to create ambient lighting in areas such as TV backdrops, ceilings, cabinets, staircases, and mirrors. Its seamless illumination is particularly popular for mirror lighting, where its soft, high-CRI light offers even, shadow-free lighting—ideal for tasks like grooming and makeup.

  • Commercial Applications

    The Dotless LED Line brings elegance to commercial spaces, hotels, retail displays, and entertainment venues, adding both functionality and style with its uniform, attractive lighting effects.

Wholesale Dotless LED Strip By Series

Our advanced technology and manufacturing/R&D capabilities enable us to efficiently handle bulk orders of standard LED strips and various types of OEM and ODM strip lighting. With state-of-the-art automated production equipment, our highly automated production lines significantly improve efficiency, allowing a single worker to operate multiple machines. This automation minimizes human intervention during production, with operators only required to intervene in cases of irregularities or alerts. This high level of automation not only increases productivity and accuracy but also reduces production costs by minimizing errors and labor expenses.

We offer a wide range of COB LED strips in various types and color options:

  • Single Color COB Strips: Available in 2700K, 3000K, 4000K, and 6000K, as well as vibrant colors such as red, green, blue, orange, amber, and pink.
  • Dual Color COB Strips
  • RGB, RGBW, and RGBCW COB Strips
  • Dynamic COB Strips: Including dynamic white, dual-color, and RGB versions for versatile lighting effects.

All Dotless LED Strips come with 3M adhesive backing, making them easy to install and adaptable to various spaces. The choice of adhesive is customized to match specific environmental requirements, ensuring a reliable installation.

Our Dotless COB LED strips have a lead time of 3-5 days, while OEM orders are fulfilled within 10-15 working days. We offer free product and packaging design support, technical assistance, and cost-effective solutions to meet your project needs. Please feel free to contact us to discuss your requirements and receive a custom quote.

Dotless LED Strip Index

Customized Solutions for Dotless COB LED Strips

At LEDWorker, we offer professional custom services for our Dotless COB LED strip lights to meet diverse needs, including designing manuals, labels, packaging, and custom logos.

Customization Options:

  • LED Quantity per Meter: We adjust LED density to enhance linear light effects. Higher LED density creates a more seamless and even light output.
  • Custom PCB Design: Based on the environment, we offer various PCB designs, including narrower widths for tight spaces, wider boards for better heat dissipation, double or triple-row configurations, and flexible S-shaped designs.

  • Waterproofing Levels: We customize waterproofing to fit different environments. Options range from IP20 (non-waterproof) to IP68 (full waterproof), depending on installation needs.



  • Custom Color Temperature: Standard temperatures are 3000K, 4000K, 6000K, 8000K, and 10000K, but we can create specific temperatures based on spectral chromaticity coordinates if required.

  • Color Bin (MacAdam Step): We typically provide a three-step MacAdam binning standard but can offer single-step binning if needed for enhanced color consistency.
  • CRI Customization: For clients with specific color rendering index (CRI) needs, we can offer CRI 90 or CRI 95 values, even for specialized environments like photography studios.
  • Custom Packaging: We can create tailored packaging, including labels, bags, boxes, and display stands, ideal for retail and bulk clients.

Industry Expertise: We bring years of customization experience, having served notable clients such as Ford and Best Buy with OEM and ODM services. Our products adhere to ISO9001, CE, RoHS, and UL standards, ensuring quality and reliability.

For any inquiries, our sales team is available 24/7 to provide comprehensive support.

With our extensive experience in customizing LED strips, we have provided OEM and ODM services to well-known brands like Ford and Best Buy. All our products comply with ISO9001, CE, RoHS, and UL certifications. We are confident in our ability to deliver products that meet your specific needs. If you have any requests, please contact our sales team—they are available 24/7 to offer you a comprehensive purchasing experience.

Certifications at LedWoker

At LEDWORKE, we are committed to our core values of customer-centricity and quality-first. Our goal is to build a modern, large-scale, and international company, and to that end, we have obtained various certifications to guarantee the quality and reliability of our products.
Certifications include:
ISO9001: Quality Management System certification.
ISO14001: Environmental Management certification.
TUV: Certification for safety and quality.
Our single-color LED strips have passed the following certifications:
CE: Ensures that our products comply with EU safety, health, and environmental requirements.
ROHS: Certifies that our products are free from hazardous substances.
ETL: Recognizes product compliance to North American safety standards.
REACH: Guarantees that our products adhere to regulations concerning the safe use of chemicals in the EU.
UL: Ensures that our products meet rigorous safety standards, especially for the U.S. market.
Additionally, we can provide specific testing reports per customer requests, including:
Salt Spray Test Reports: For evaluating corrosion resistance.
ERP Test Reports: Related to energy consumption and performance.
LM80 Test Reports: For long-term lumen maintenance.
EN 62471: Compliance with blue light hazard standards.

Text Report Download

Click For More Certificates

Testing

As a professional LED manufacturer, LedDesignsPro ensures that all of our LED strips undergo rigorous testing to guarantee top-notch quality and reliability. Our products are subjected to repeated cycles of thermal shock, high temperature and humidity storage, normal temperature aging, high humidity heat aging, and twist testing. Additionally, we utilize the Spektron coating integrating sphere to accurately measure the luminous flux (LM value) of our LED strips, maintaining strict quality control throughout the production process.

Below are the specific testing conditions, cycles, judgment criteria, and the equipment used:

Test Item Test Conditions Duration/Cycle Judgment Condition Use Equipment
Thermal Shock –40℃ 30min ↑↓ 5sec 100℃ 30min 200 cycles No cracked glue, no dead light Hot and cold shock box
Humidity Heat Storage Ta=85℃, RH=85%, Rated voltage 1000 hours Luminous decay ≤10%, no cracked glue, no dead light High temperature and humidity box
Life Test Ta=25℃, Rated voltage 1000 hours Luminous decay ≤3%, no cracked glue, no dead light Room temperature aging seat
High Humidity Heat Life Test 60℃, RH=90%, Rated voltage 1000 hours Luminous decay ≤10%, no cracked glue, no dead light High temperature and high humidity aging box
Twist Test 0.5M fixed at both ends, twisted 360°/cycle 300 cycles No dead light, no cracked glue Distortion test machine

Why Wholesale Dotless LED Strip in Bulk From Us?

Choosing to wholesale Dotless LED strips from LedDesignsPro comes with numerous benefits designed to meet the needs of your business:

  • Quality and Safety

    At LedDesignsPro, we prioritize quality and safety. All of our LED strips are manufactured using the finest materials and undergo rigorous testing to ensure they meet the highest standards. Every product is certified with CE and RoHS certifications, guaranteeing that our LED strips are both safe and reliable for a variety of applications.

  • Competitive Pricing

    By producing our own LED chips and controlling every step of the manufacturing process, we are able to offer our products at highly competitive prices. This allows you to maximize your profit margins without compromising on quality.

  • Customizable Solutions

    We understand that different projects have unique requirements. That’s why we offer comprehensive customization options, including LED density, PCB width, waterproofing levels, and color temperature. Whatever your project demands, we can deliver LED strips tailored to your exact specifications.

  • Production Capabilities

    With our advanced manufacturing facilities and high production capacity, LedDesignsPro is equipped to handle bulk orders with ease. Whether you need thousands of meters for a large commercial project or a specific design for a niche market, we have the capacity to meet your demands efficiently and on time.

  • Fully Support

    Our commitment to excellent customer service doesn’t end with the sale. We offer 24/7 support to ensure that your wholesale experience is seamless from start to finish. Our team is always ready to assist you with any inquiries, provide technical support, or help with logistics to ensure timely delivery.

  • Proven Track Record

    We have built long-term relationships with clients worldwide, including well-known brands and large-scale distributors. Our consistent product quality, reliable service, and flexible solutions have earned us a reputation as a trusted supplier in the LED lighting industry.

FAQs

Here are top asked questions, feel free to contact us for more details.

  • What is dotless LED tape?

    means the dot is not so clear to see. it's not like SMD2835, SMD5050 ect. this kind of SMD is a little big. the others like 2110, 2016, COB is all we call dotless led tape.



  • Can you cut dotless LED strip lights?

    Sure, we can cut it. cut the cut mark line.

Inspire Creative Lighting With LedDesignsPro!

We are here for all your business needs and questions.

Contact Us Today

More Articles …
